适用线缆：STP-1、STP-2、NISPT-1、NISPT-2（18AWG-16AWG单、双绝缘线共用）、RVV/2(0.5、0.75)
适用产品（建通）：M88656A-2P、988656A-2P
工艺介绍：集剥皮、自动送料、铆压一次完成。自动吹气给油，延长刀具使用寿命。与原始作业方式相比节省3-5人，提高节能、减少人工、环保节能、安全可靠。
Suitable cable:STP-1、STP-2、NISPT-1、NISPT-2、RVV/2(0.5、0.75)
Application(GEM):M88656A-2P、988656A-2P
Process introduction: Set peeling, automatic feeding, riveting pressure once completed. Automatic blow to the oil, extending tool life. Compared with the original mode of operation to save 3-5 people, improve energy efficiency, reduce labor, environmental protection and energy saving, safe and reliable.
适用产品（建通）：M88656A-2P、988656A-2P
工艺介绍：集剥皮、自动送料、铆压一次完成。自动吹气给油，延长刀具使用寿命。与原始作业方式相比节省3-5人，提高节能、减少人工、环保节能、安全可靠。
Suitable cable:STP-1、STP-2、NISPT-1、NISPT-2、RVV/2(0.5、0.75)
Application(GEM):M88656A-2P、988656A-2P
Process introduction: Set peeling, automatic feeding, riveting pressure once completed. Automatic blow to the oil, extending tool life. Compared with the original mode of operation to save 3-5 people, improve energy efficiency, reduce labor, environmental protection and energy saving, safe and reliable.
机械参数表
Mechanical parameter table
Mechanical parameter table
|
机械型号 Mechanical type |

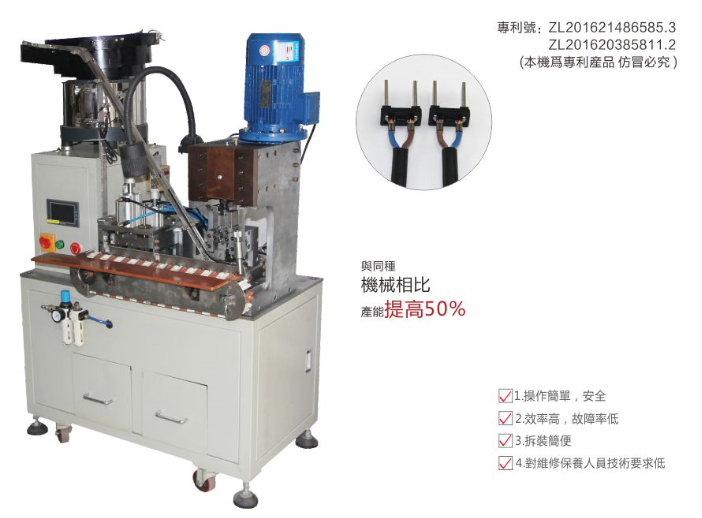

71-AT-3000RZ/GBL |
铆压速度 Riveting speed |
2400PCS/小时 |
|
动力 Working Pressure |
3T |
电压 Voltage |
AC220V/50Hz |
|
工作气压 Working pressure |
0.5-0.8MPa |
重量 weight |
380KG |
|
体积 volume |
900mm*500mm*1400mm | ||
