适用线缆:STP-1、STP-2、MISPT-1、MISPT-2、VFF、HVFF、H03VVH2-F、RVV
适用产品(建通):98657AR(膠套:8657-2P)87662(膠套:7662-2P、7662A-2P)
注:8657-2P无防火墙、7662A-2P有防火墙

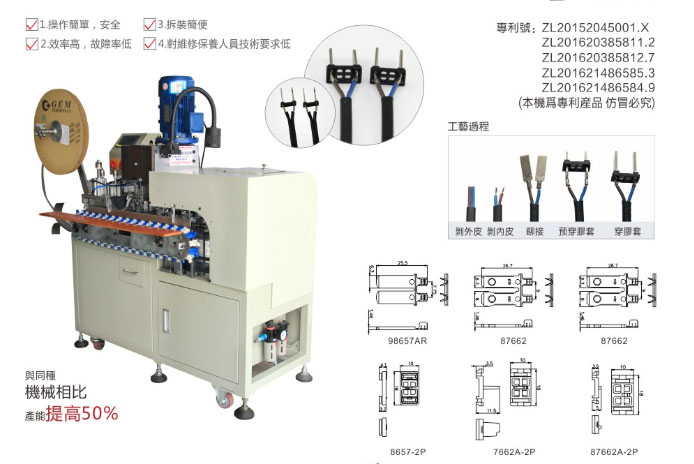

工艺介绍:集剥皮、分线、铆压、组装膠套一次完成,自动吹气给油,节省端子油及人工刷油时间,延长刀具使用寿命。与原始作业方式相比节省4-6人,提高节能、减少人工、环保节能、安全可靠。
Suitable cable:STP-1、NISPT-2、VFF、HVFF、H03VVH2-F、RVV
Application(GEM):98657AR(The rubber sleeve:8657-2P)87662(The rubber sleeve:7662-2P、7662A-2P)
Process introduction:Set the peeling, sub-line, suppression, assembly of a complete sets of plastic bags, automatic blow to the oil, save oil and artificial oil terminal oil to extend the tool life. Compared with the original mode of operation to save 4-6 people, improve energy efficiency, reduce labor, environmental protection and energy saving, safe and reliable.
Mechanical parameter table
机械型号 Mechanical type |
71-AT-3000RZ/A2P |
铆压速度 Riveting speed |
24000PCS/小时(hour) |
动力 Working Pressure |
3T |
电压 Voltage |
AC220V/50Hz |
剥线尺寸 Wire Stripping size |
7mm |
重量 weight |
455KG |
工作气压 Working pressure |
0.5-0.8MPa |
体积 volume |
1200mm*500mm0*1400mm |
